7. Payload specifications

7.1. Payload

  1. Robot payload300kg；

  2. The robot payload should be evenly distributed, the edges must not exceed the upper surface area of AMR, the maximum height of the highest point from the ground is ≤1800mm; the center of gravity of the payload must not exceed the range shown in chart 6.1-1.

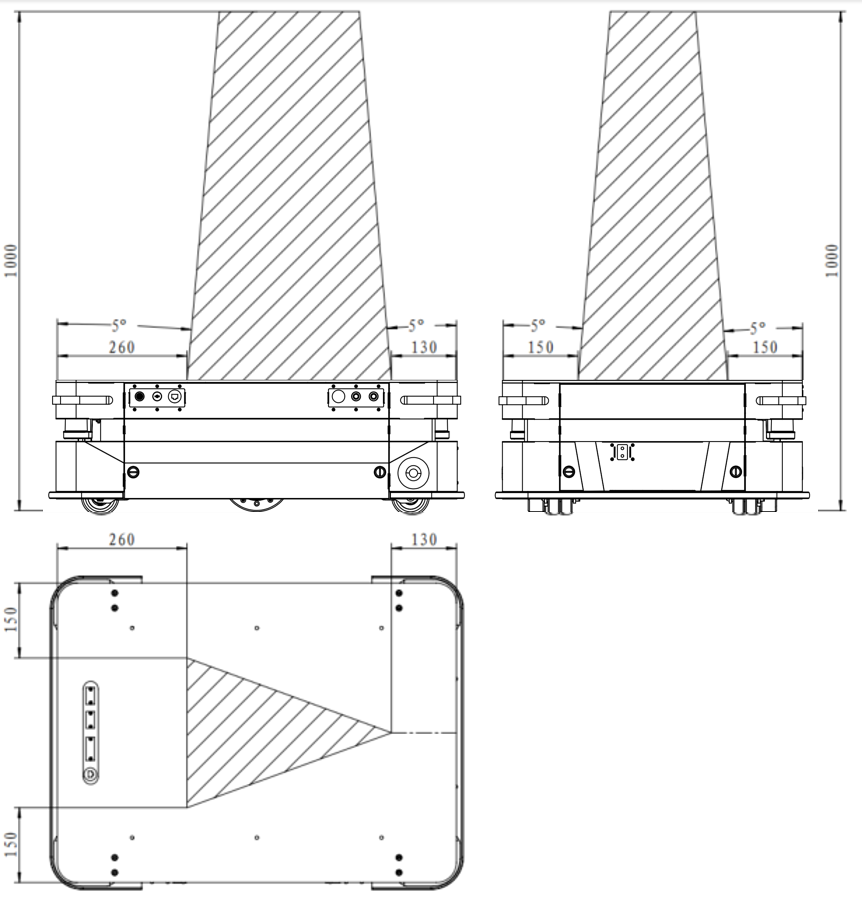

Diagram 7-1 load center of gravity range
